PS Engineering has revolutionized audio control in general aviation airplanes. At that time, the original PMA6000 took the audio panel from a collection of switches added as an afterthought, to a multitalented intersystem focal point for cockpit audio.

Radio selection, cockpit communications and even music were seamlessly combined in the modern audio control panel. The PMA6000-series set a benchmark for all GA audio panels that followed.

The next generation PMA6000B has been given the benefit of PS Engineering's 20+ years of audio panel control design and 35+ years manufacturing experiences. It offers a low cost alternative to the  more capable audio panel product line that the industry has become to expect from such a focused driven company.

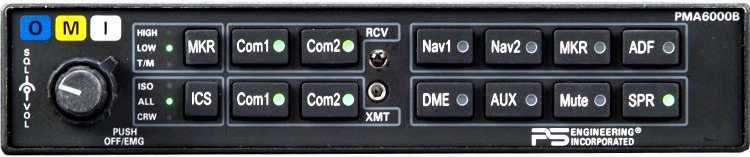

The PMA6000B combines an audio selector panel with a top-quality manually adjusted VOX intercom and a slew of features to enhance versatility and utility.

Check list of capabilities:

• Built-in 4 place mono intercom PS Engineering's "Set-it and Forget-it" manual VOX

• Optional built-in marker beacon receiver.

• Split mode for dual audio capability

• 2 - Com Capability

• 3 - Intercom isolation modes - Pilot Isolate, All, and Crew

• 2 - Music inputs with Soft Mute™

• 2 - Unswitched inputs

• 6 - Switched inputs

• A patented "swap" function allows selection of Com 1 or Com 2 from remote pushbutton

• Fail-safe feature automatically hard-wires the pilot to Com1 in the case of an outage

• Uses a single 44-pin connector making installation easier.


The PMA6000B holds both FAA TSO as well as EASA ETSO and was designed to be made easier to install because of a single 44-pin Sub-d connector.
